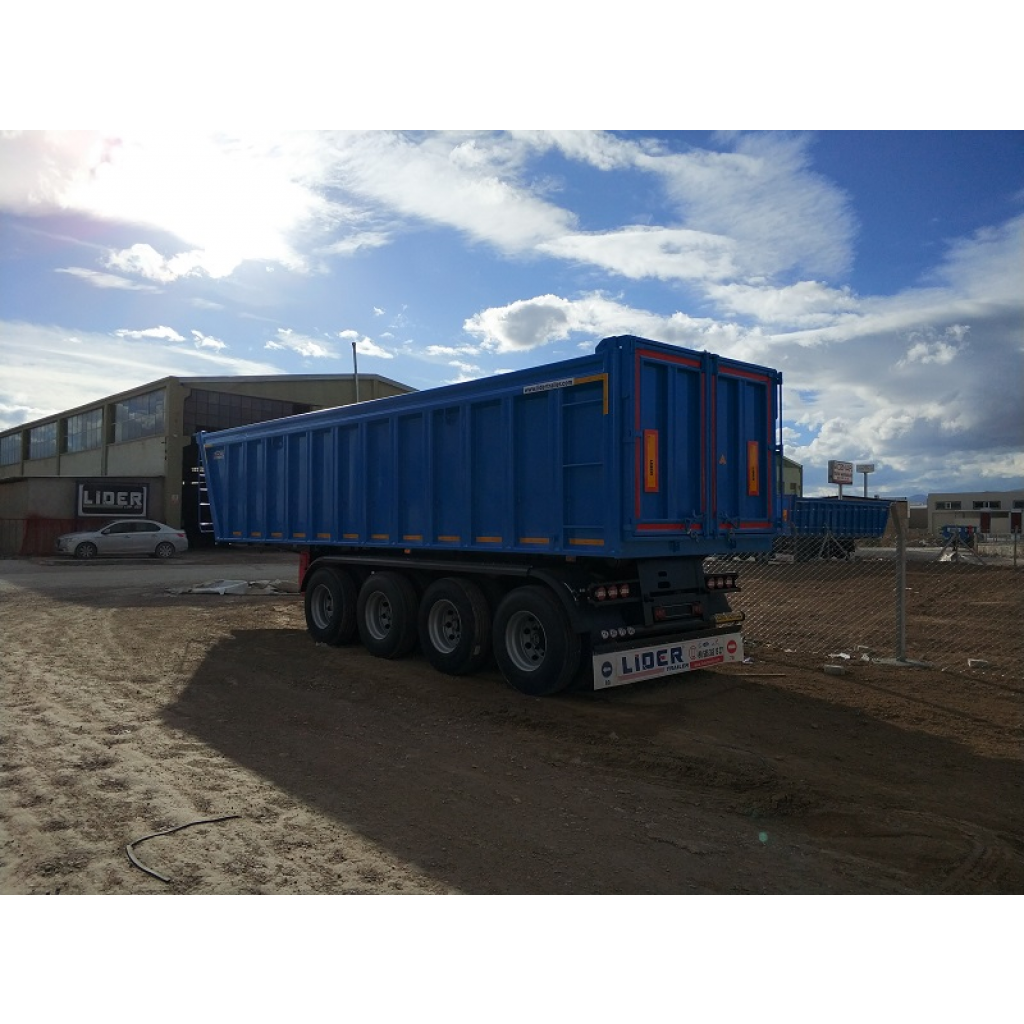

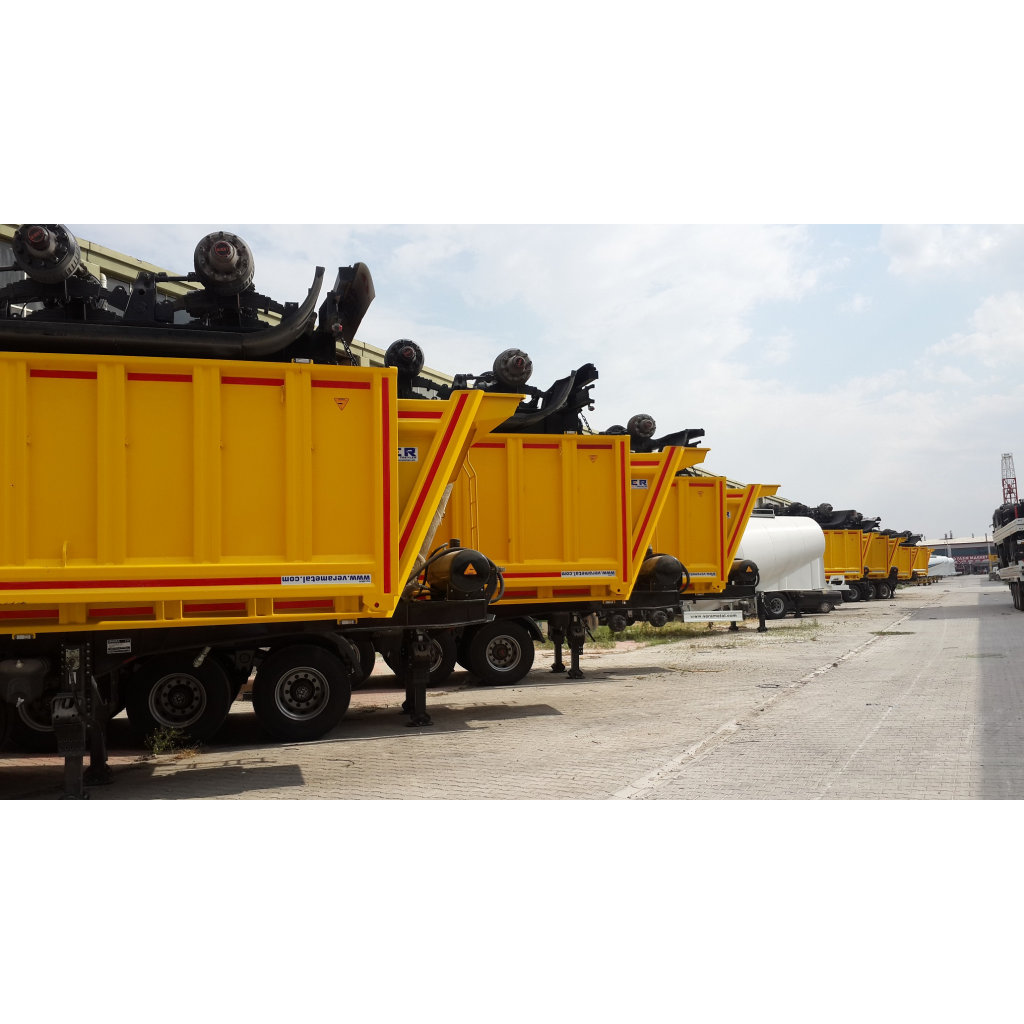

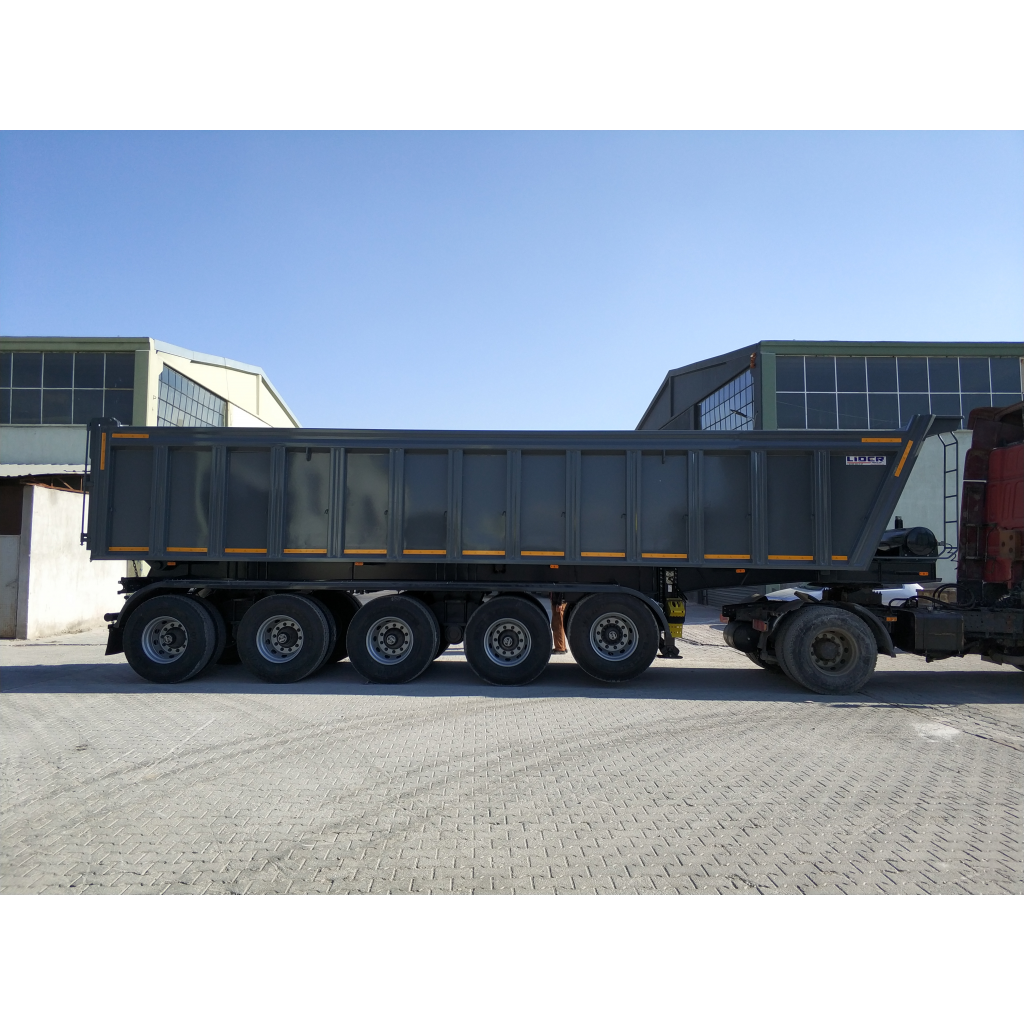

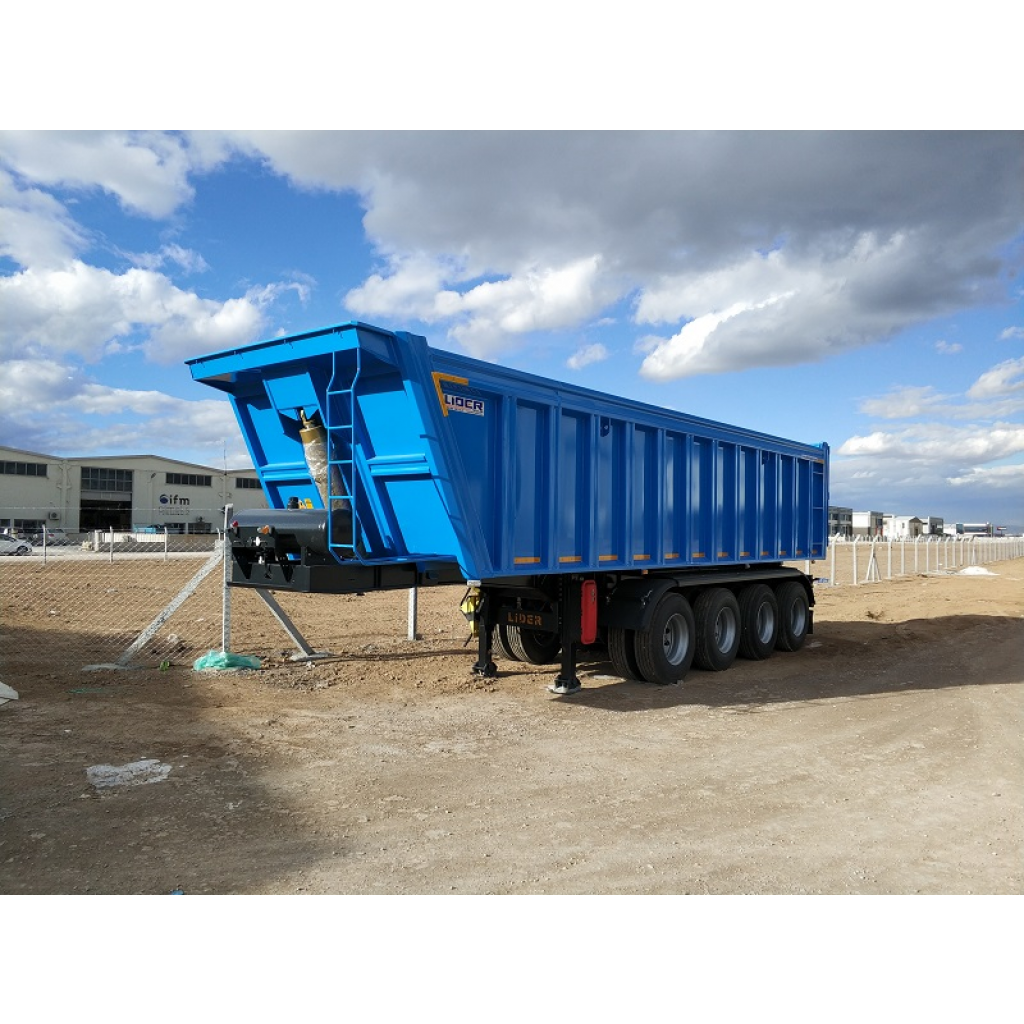

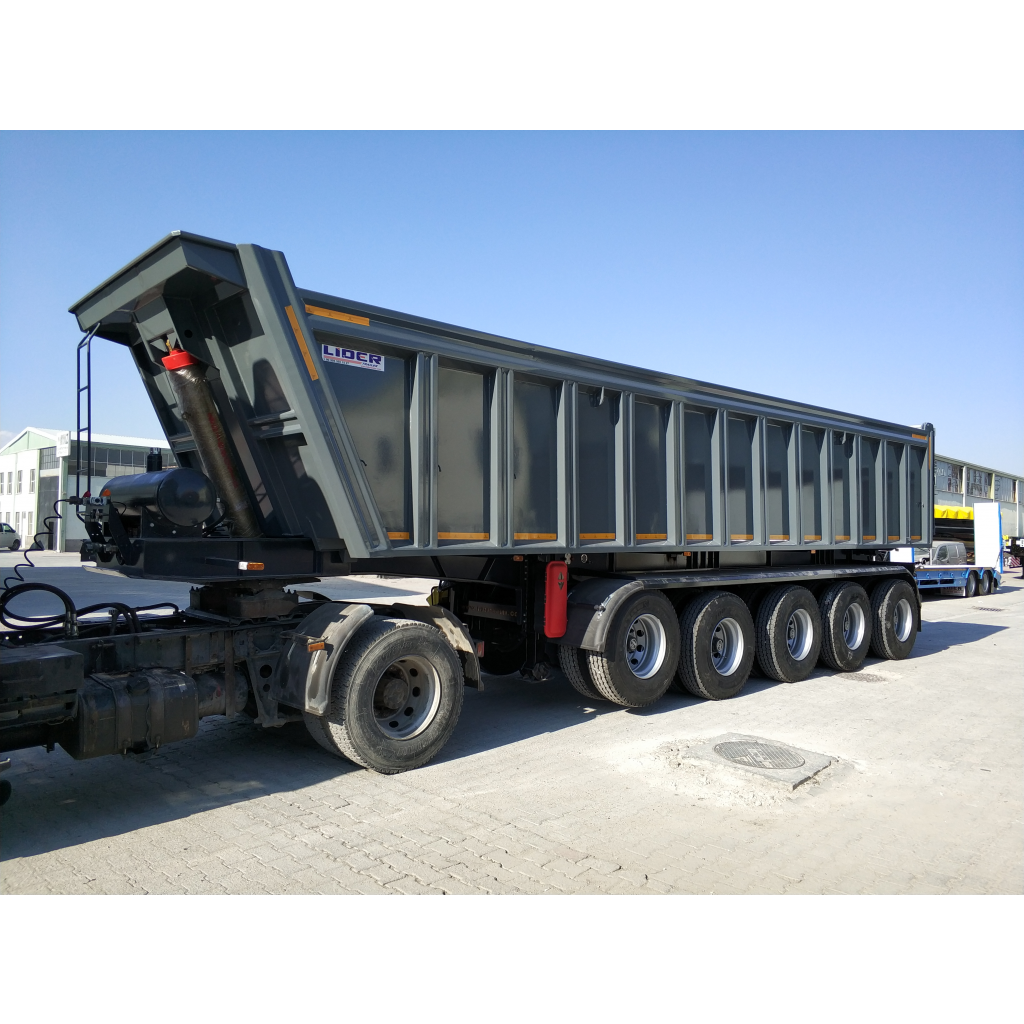

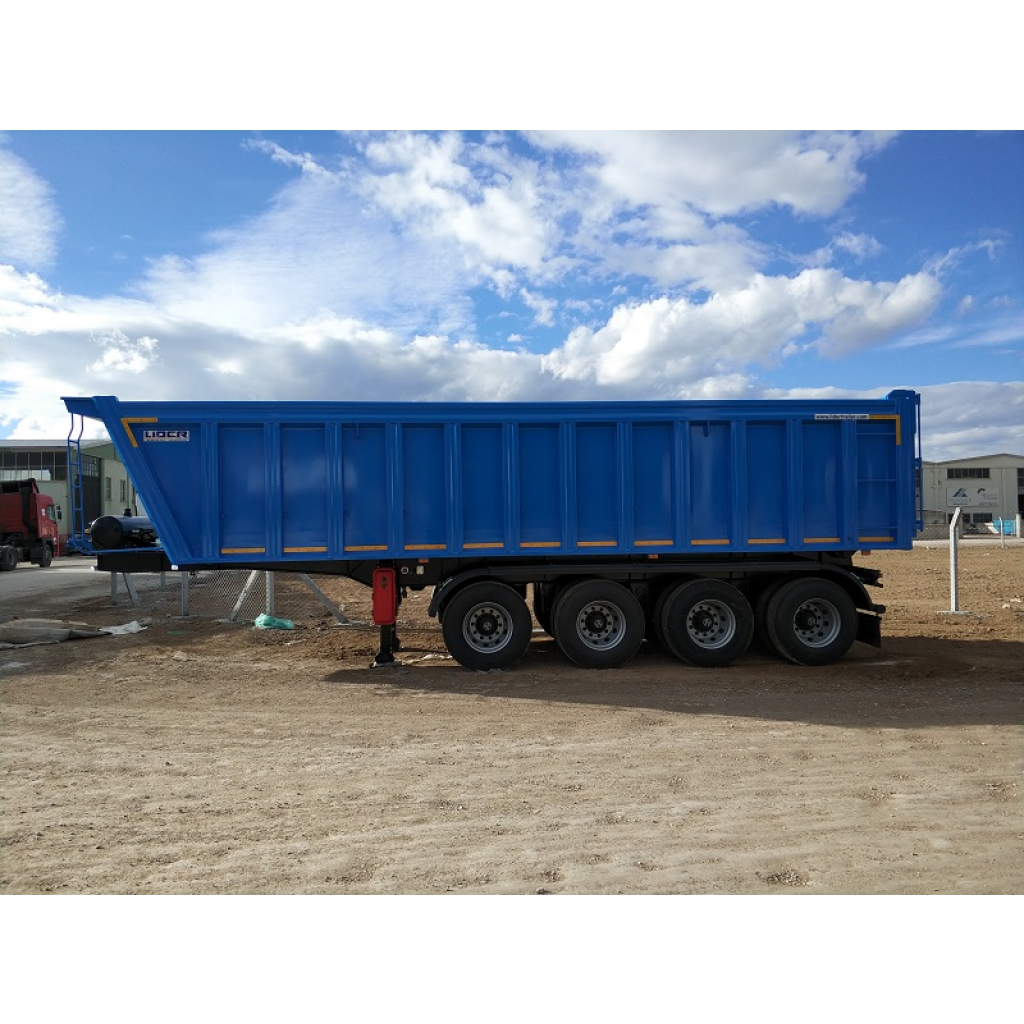

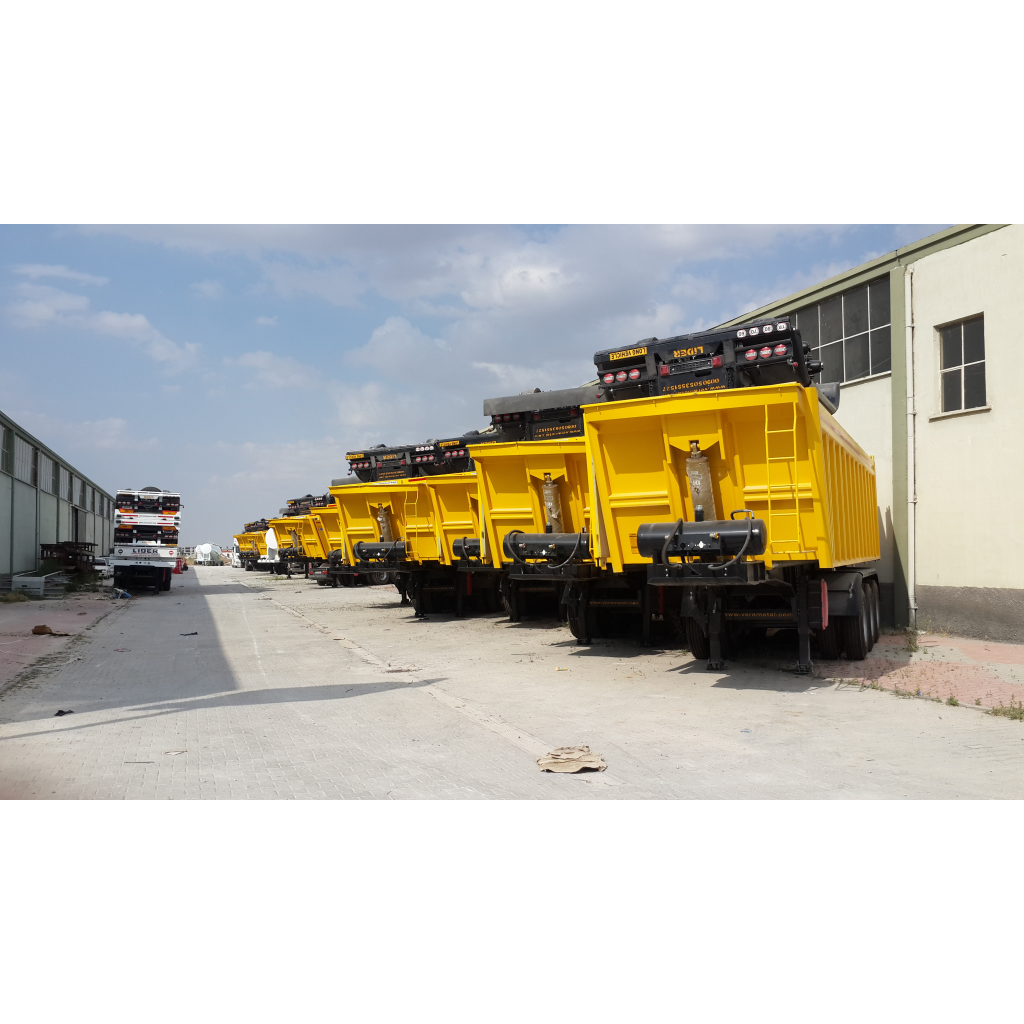

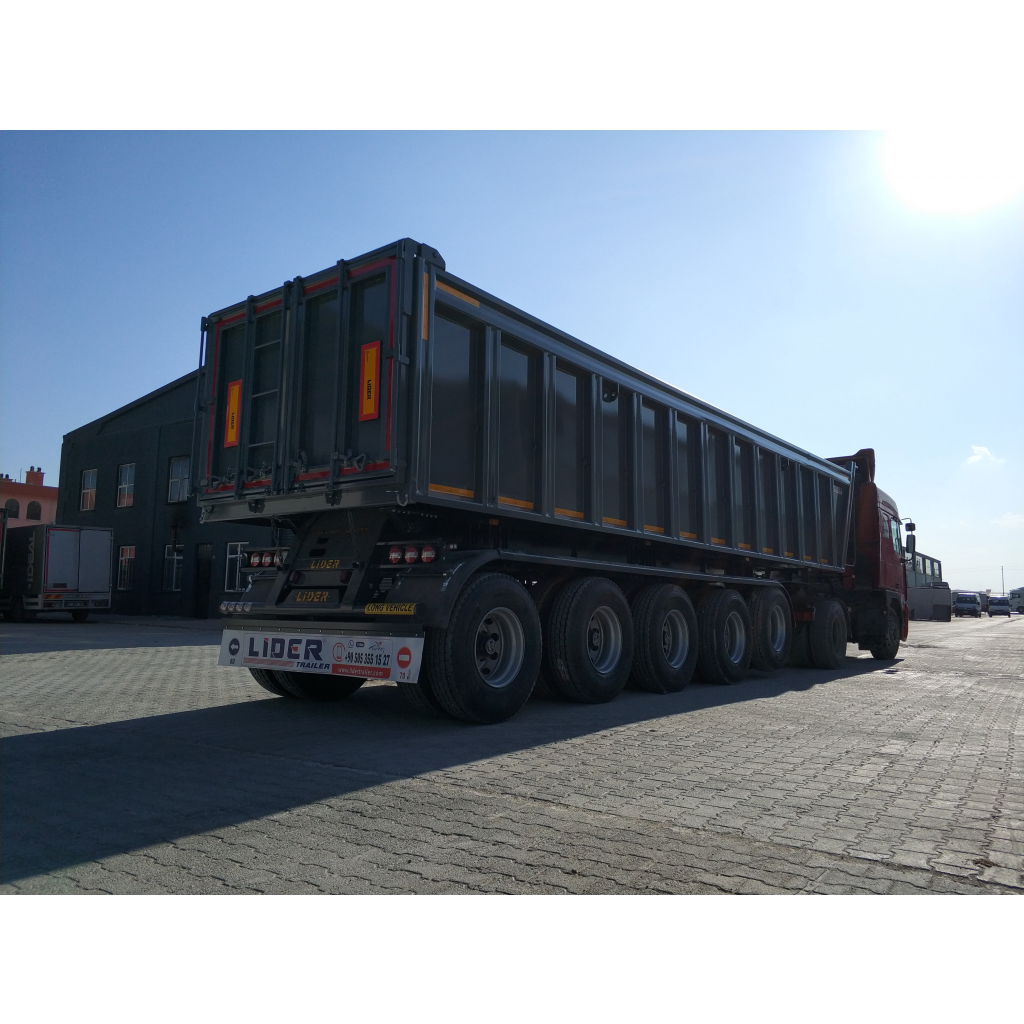

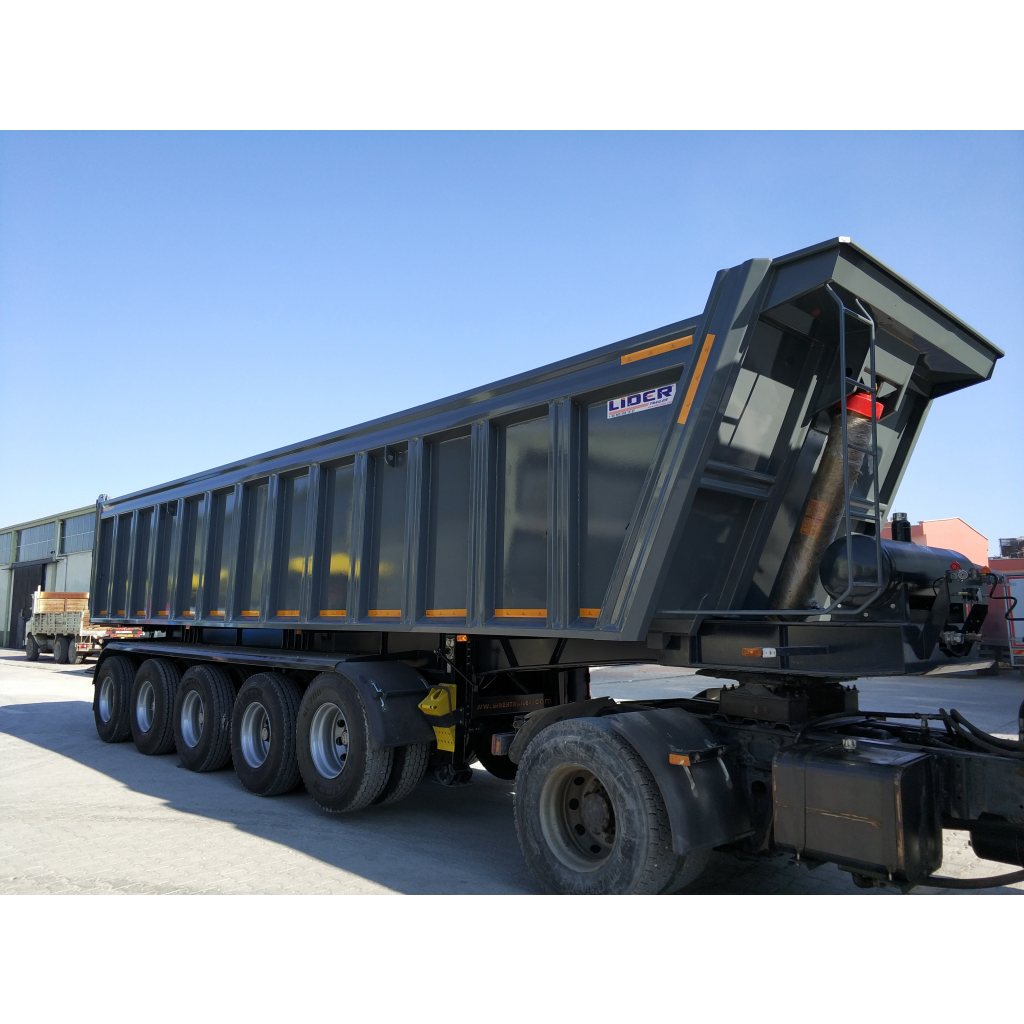

Rock dumper
TEKNİK BİLGİLER
Rocks type dumper trailer is used in Africa countries because this dumper trailer have a high capacity and strong chassis and steel for Africa roads .
Rock tipper is the best for Africa countries , we have sell our dumpers to all Africa countries with best prices .
You can see our specifications about Rock tipper in attached .
28 M³ Rock Dumper Trailer Technical Properties ;
- Chassis :Produced by gas welding machines from high resistance steel ST52 meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine
- King Pin : Produced with wrought iron (42 cr Mo4)Thats high resistance to tension and breaking off compliance with 2’’and 3.5’’ SAE/DIN norms and provides easy replacement posibility with screw connections
- Axles : 3 X 14000 kg carriying capacity. Turkish Mark automatic brake adjustment lever and compliance with european standards. Off drum brake systems.
- Brake System : Designed according into the european standards are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (394x210 mm) axle brakes. There are two pieces of replecable protective brake sockets.
- Mechaniacal Suspension : Two axles has leaf spring system (14 sciors) as mechanical suspension combined with 3 axels systems. Designed as Exceed Capacity carriying.
- Counterfort : They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
- Rear Bumper : 70/221/ AT version rear bumper
- Batten : 1 unit parking batten with moving equipment.
- Mudguard : 2 unit complete mudguard
- Spare wheel : Single saddle type
- Cupboard : 1 unit cupboard
- Water tank : 60 lt Water Tank
- Paint : Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in Paint Oven.
- Electrical equipment : Electrical equipment At side 5 unit Lamps 60, 70, 80 Label, At rear park lamps, Plate lamp Triangle reflector. 2 X 7 pim electric sockets:
- Body Volume : Body Volume 28 M³ capacity
- Body Meterial : Type body can be make 30 MT3 dumper type. And the material will be 5 mm Side and 4 mm Bottom ST 52 (A1) quality sheet stell are using iron
- Telescobic cylinder and Hydraulic Cylinder : It designed according to the conditions of bumpers length and working conditions.Our manufacture heavy work cylinder is fixed to the telescobic cylinder machine.The dumper got pneumatic control double lowering ventil dumper transmission pump acuple type border control safety valve The used air hydraulic hoses and records are in confirmation of Europe Union standarts. 5 stroke and heavy type Turkish brand hydraulic cylinder. Optionally horizontally hydrolic cylinder can be mount which most advantages is to resolve roll over risk.
- Accosseries : STANDARD ACCESSORIES ;
- 1 piece tool kit box (at the body)
- 1 piece stair from infront and rear existing
- 2 pieces PVC carrier for discharging hoses
- Plastic mudguard covering rear axle group
- 1 piece tool kit box made of sheet 1 piece discharge valve box made of sheet
- Control Panel (Check – pass, air meter, ramp lever)
- Plastic water tank
- Roller or basket spare tire carrier
- Chock and chock place
