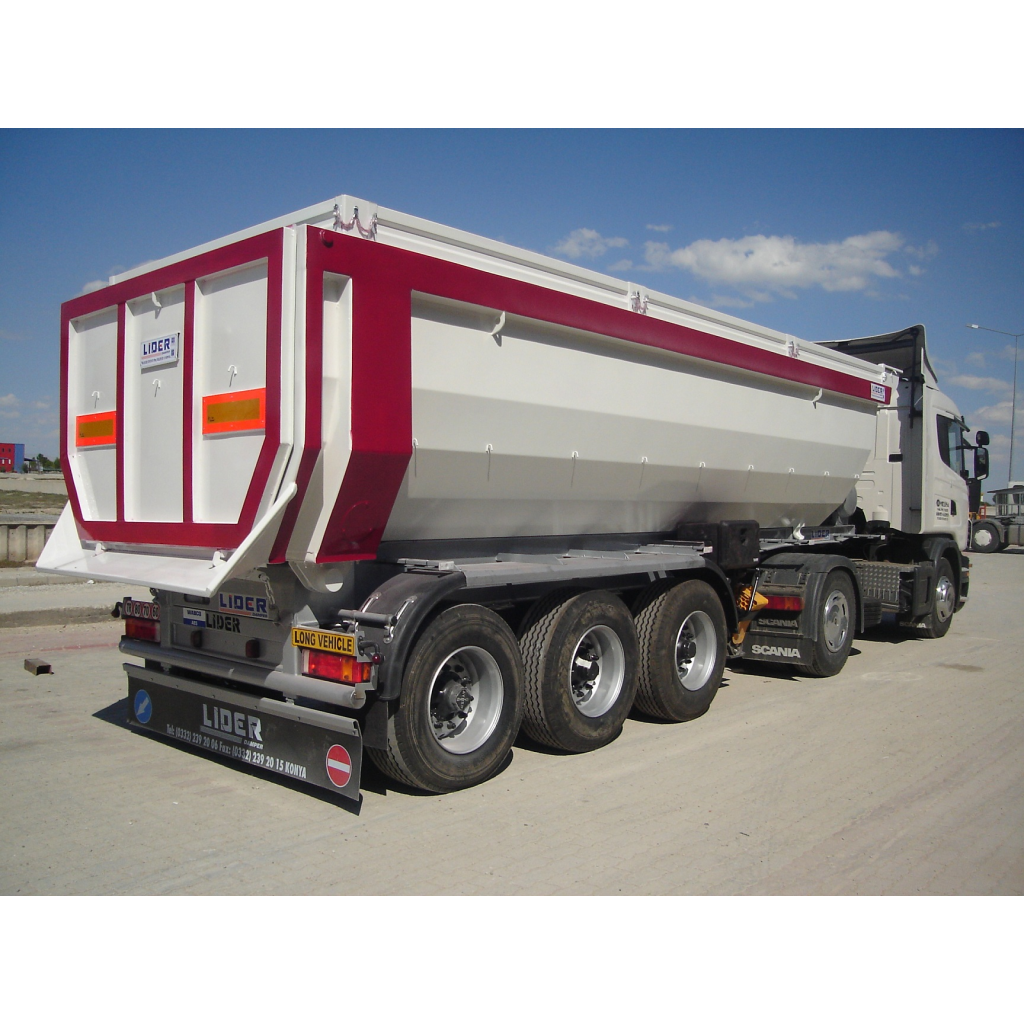

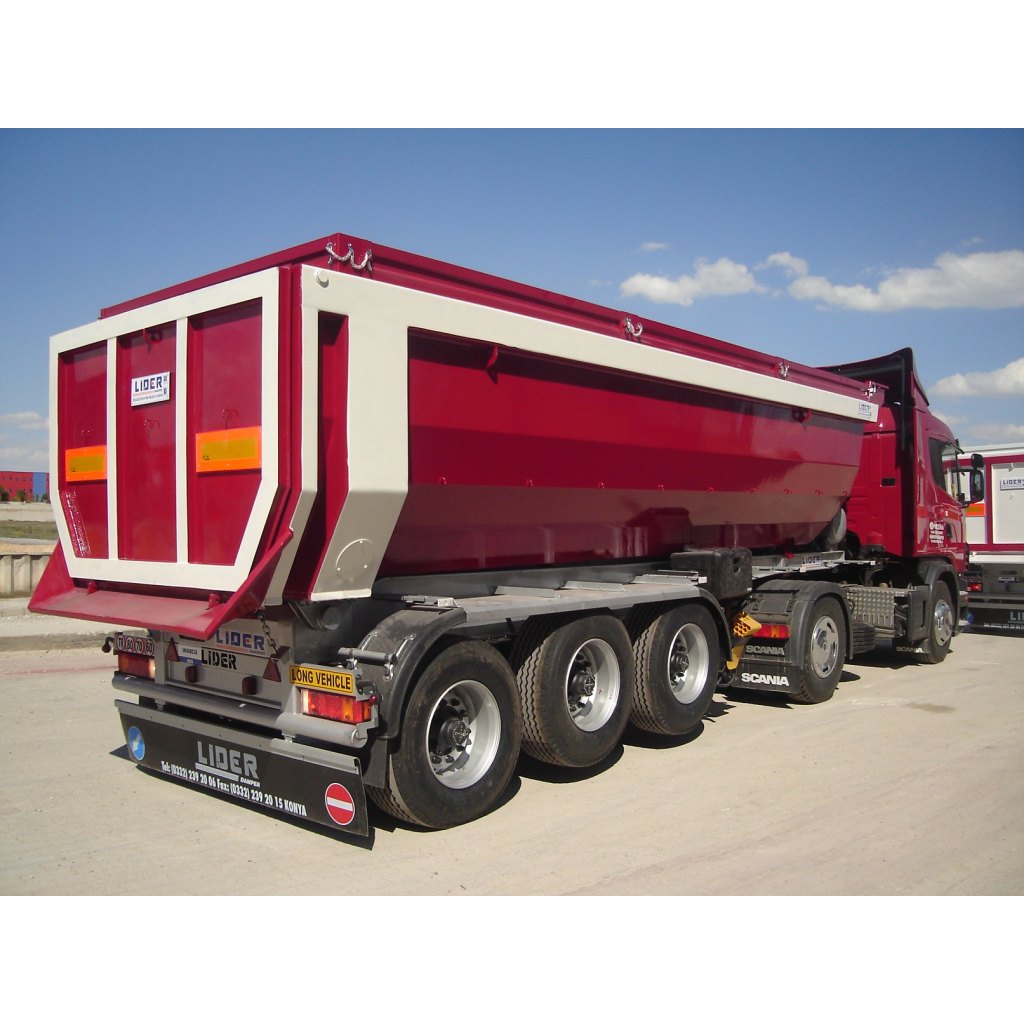

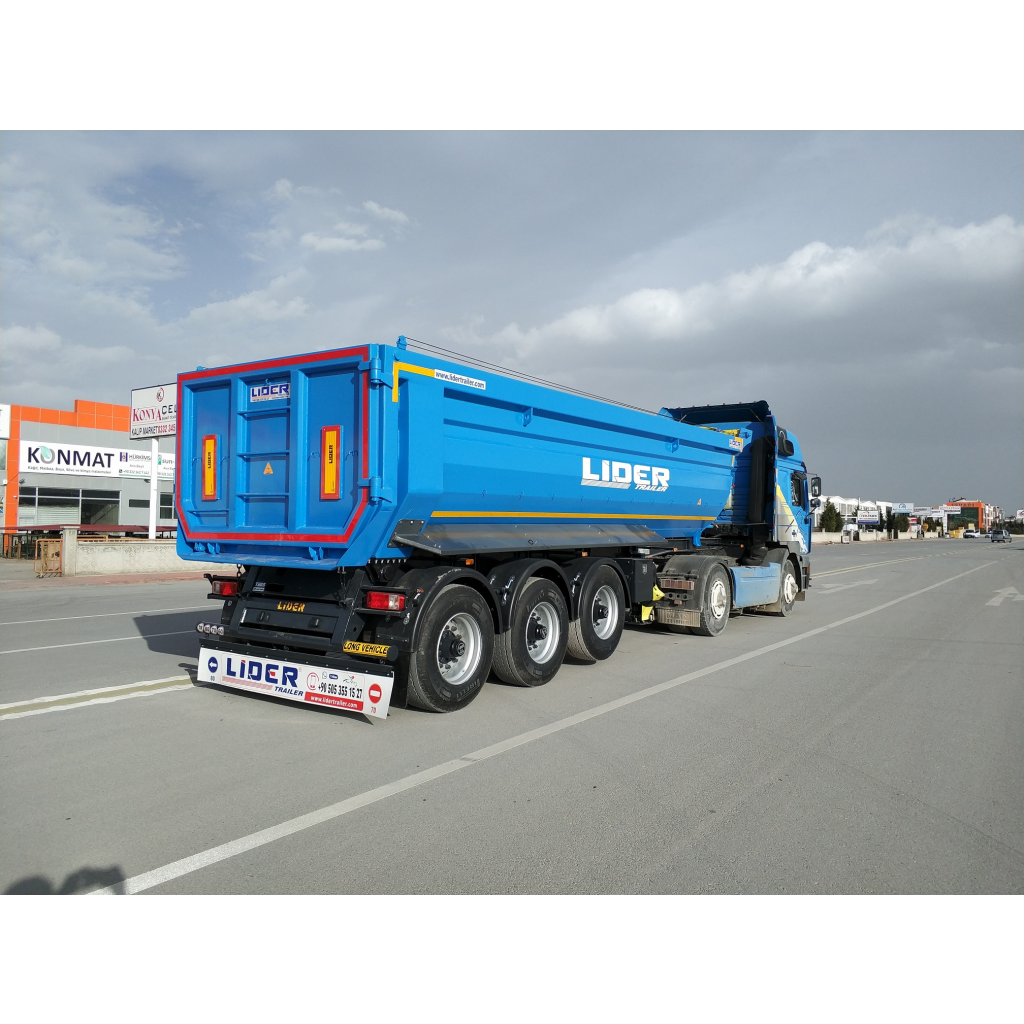

Dumper trailer , Turkey

  2. Dumper Semi Trailers, Turkey

Dumper trailer , Turkey

TEKNİK BİLGİLER

Lider Trailer is manufacture all types of tipper trailers in Turkey , among our products is Hardox Dumper semi trailers .

This Dumper trailers is manufacturing from high quality sweden Hardox steel .
All types of dumper trailers is manufacturing be Lider Trailer
  • Hardox dumper
  • Dump trucks
  • Dumper semi trailers
  • Rock tipper dumper trailers
  • Dumper trailer as per to Eu standards
Just give us your request and you will finde the best quality in our company .

The specifications for 24m³ Hardox dumper trailers ,

  • Chassis: Produced by gas welding machines from high resistance steel ST52 meterials as *I* section in resistance calculation excessive loading has been considered with robotic welding machine.
  • King Pin : Produced with wrought iron (42 cr Mo4). That’s high resistance to tension and breaking off compliance with 2’’and 3, 5’’ SAE/DIN norms and provides easy replacement posibility with screw connections.
  • Axles :3 X 9000 kg carriying capacity. SAF brand automatic brake adjustment lever and compliance with european standards. Off DISC brake systems.Complete SAF (Germany ) brand axles systems
  • Brake System : Designed according into the european standards Double line WABCO EBS Systems are used on equipped with automatic brake adjustment brake chambers (30 cylinder), Brake Disk (430x220 mm) axle system.There are two pieces of replecable protective brake sockets. Rear Axles 30x30 Service emergency bellows
  • Air Suspension :An axle has air suspension system combined with 3 axels systems. Designed as and down.
  • Counterfort : They are leader marked with double revolutions mechanic pillars with 24 tons carriying capacity.
  • Rear Bumper : 70/221/ AT version rear bumper. Lifting systems Bumper for up and down position.
  • Batten : 1 unit parking batten with moving equipment.
  • Wheel and Rim : 385/65 R 22,5 (6) UNITS Goodyear or Pirelli.
  • Mudguard : 2 unit complete mudguard.
  • Spare Wheel : Single saddle type.
  • Cupboard : 1 unit cupboard.
  • Water tank : 30 lt water tank.
  • Paint : Trailer clean before painting and repair with paste for smooth face. Then prime paint and double last paint regarding customer reguest in paint oven.
  • Electrical equipment : At side 5 units Lamps 60, 70, 80 label, at rear park lamps, plate lamp triangle reflector. 2 X 7 pim electric sockets.
  • Body volume 24 M ³ capacities.
  • Body Meterial : Type body can be make 24 MT3 dumper type. And the material will be 4 mm side and 5 mm Bottom HARDOX 450 quality sheet stell are using. iron
  • Telescobic cylinder and Hydraulic Cylinder : It designed according to the conditions of bumpers length and working conditions.Our manufacture heavy work cylinder is fixed to the telescobic cylinder machine.The dumper got pneumatic control double lowering ventil dumper transmission pump acuple type border control safety valve The used air hydraulic hoses and records are in confirmation of Europe Union standarts. 5 stroke and heavy type Turkish brand hydraulic cylinder. Optionally horizontally hydrolic cylinder can be mount which most advantages is to resolve roll over risk.
  • Accosseries : STANDARD ACCESSORIES
 - 1 piece air pressure monometer -
1 piece tool kit box (at the body)
- 1 piece stair from infront and rear existing
- 2 pieces PVC carrier for discharging hoses
 - Plastic mudguard covering rear axle group
- 1 piece tool kit box made of sheet
- 1 piece discharge valve box made of sheet - Control Panel (Check – pass, air meter, ramp lever)
 - Plastic water tank
- Roller or basket spare tire carrier
 - Chock and chock place
